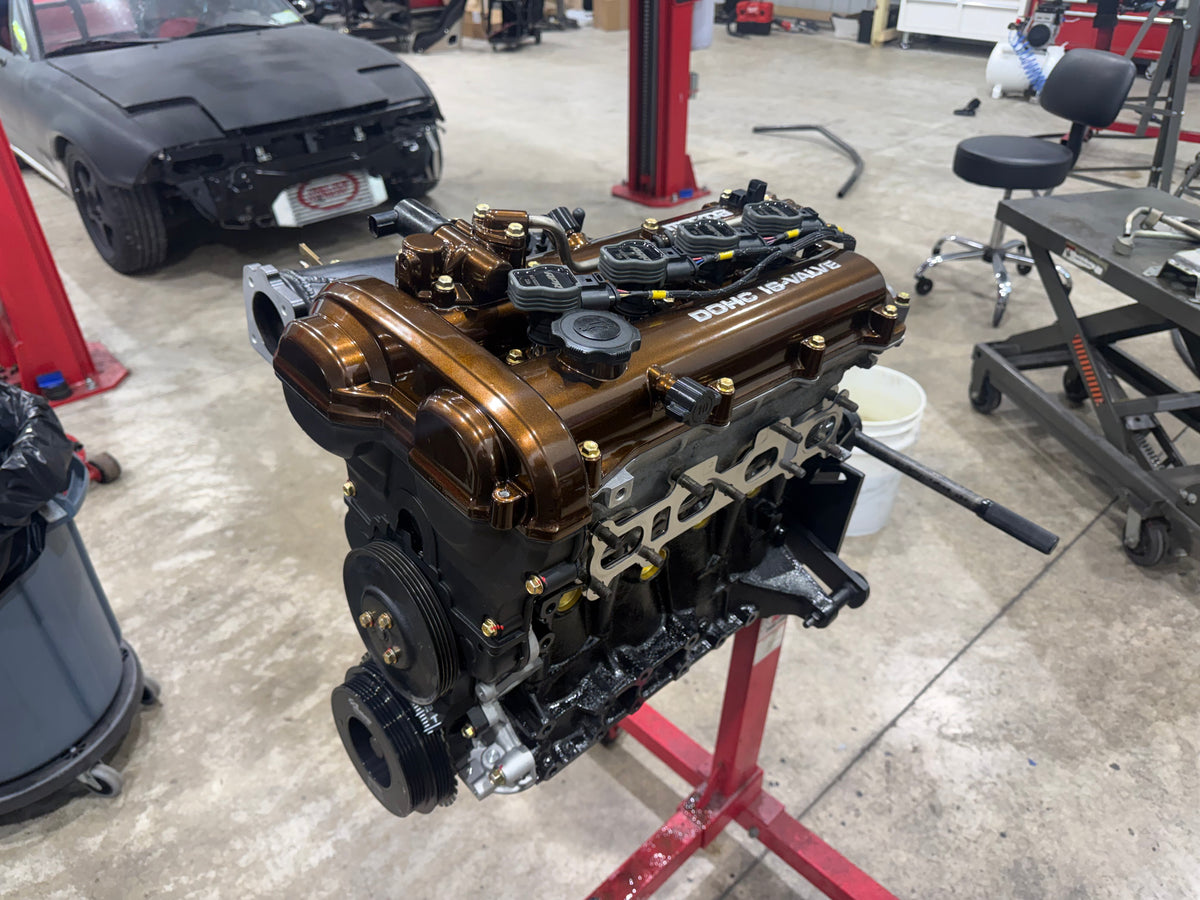

• Assembled Miata engine with bronze valve cover and coil packs on a red engine stand in the Napp Motorsports shop

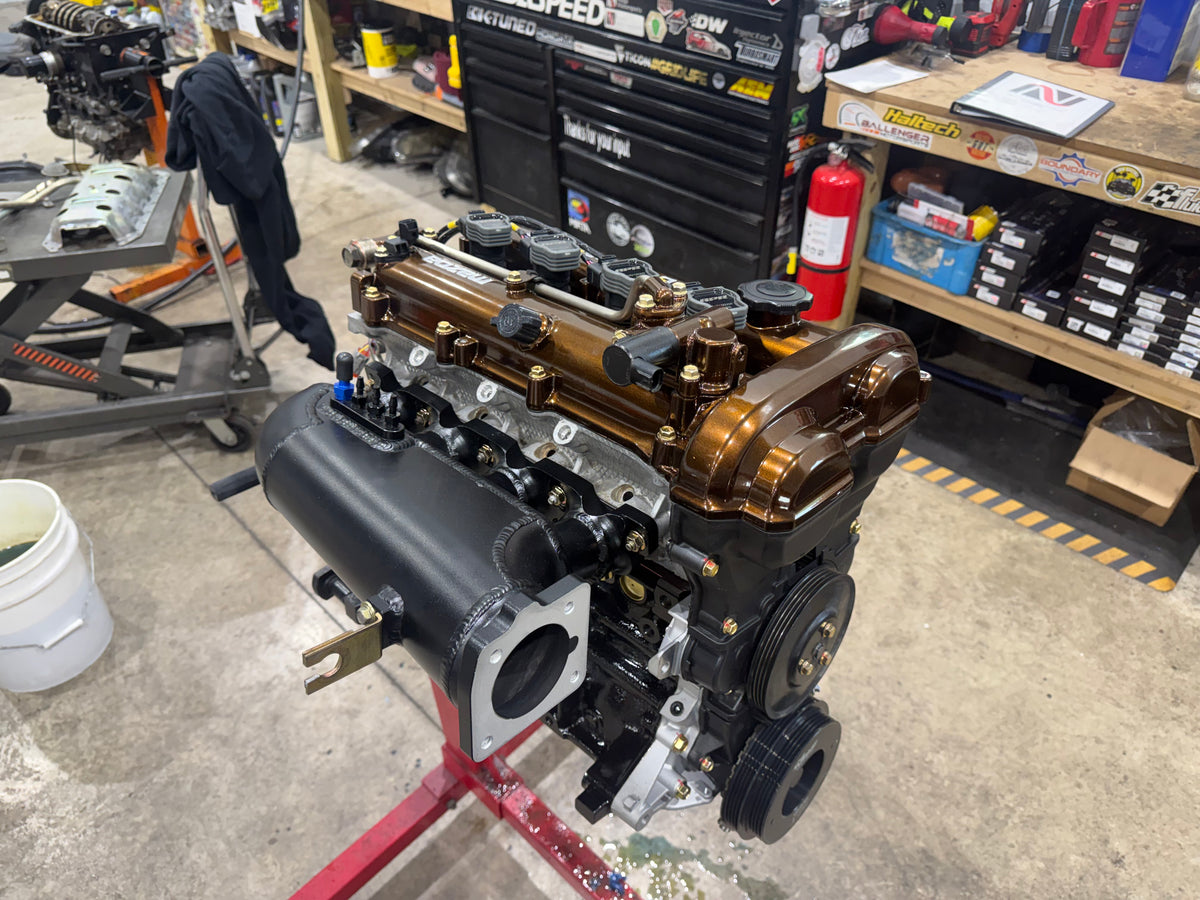

  • Assembled Miata engine with bronze valve cover and black intake manifold on a red engine stand

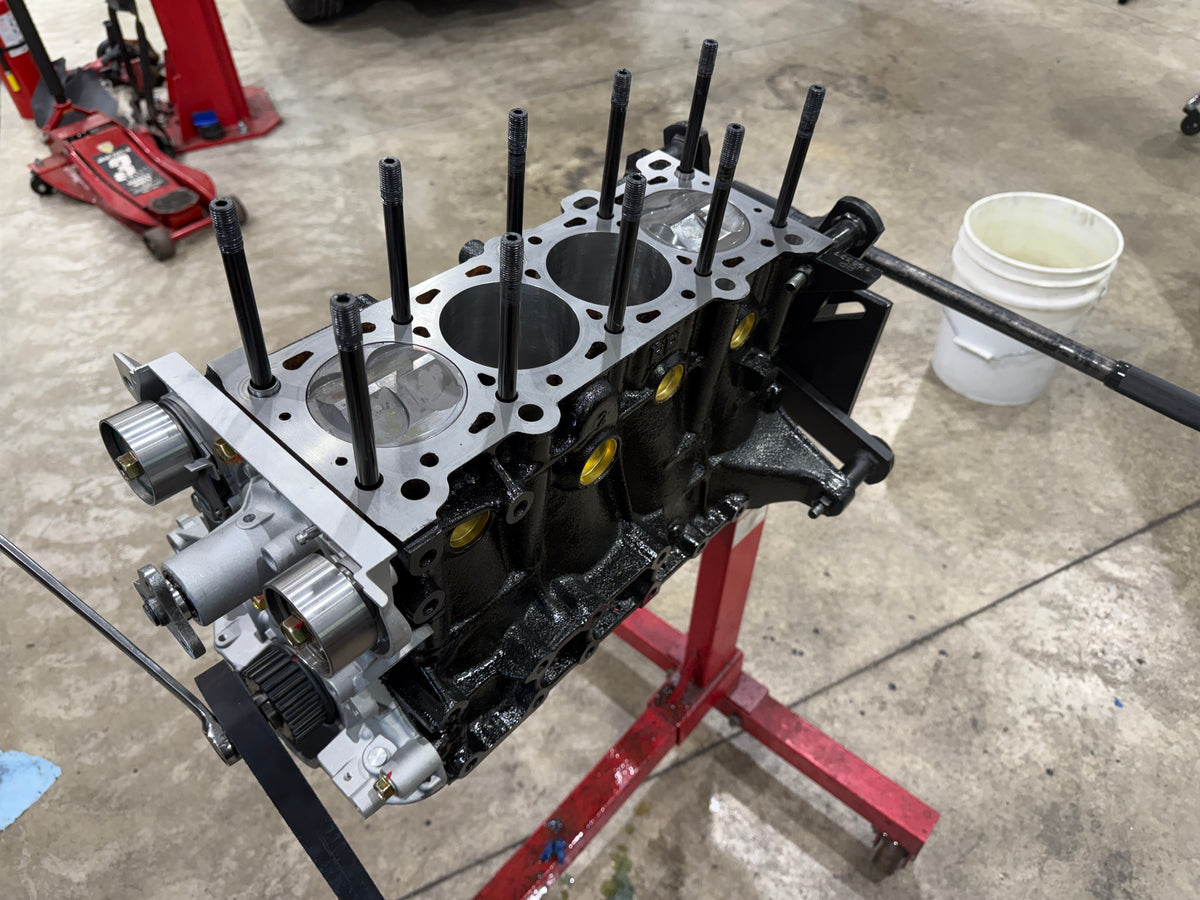

  • Miata short block on an engine stand with head studs installed and pistons visible in the bores

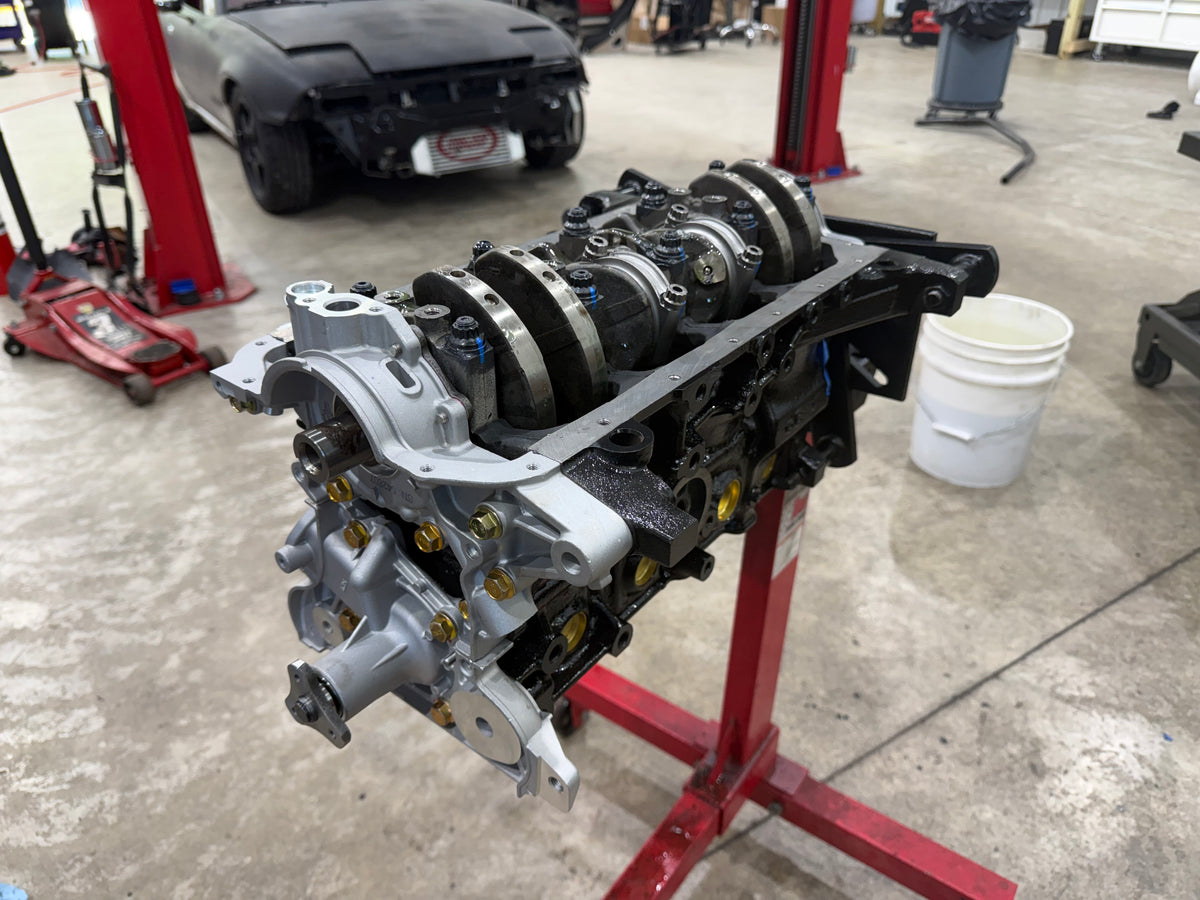

  • Miata engine block upside down on a stand showing the crankshaft, connecting rods and bearing caps

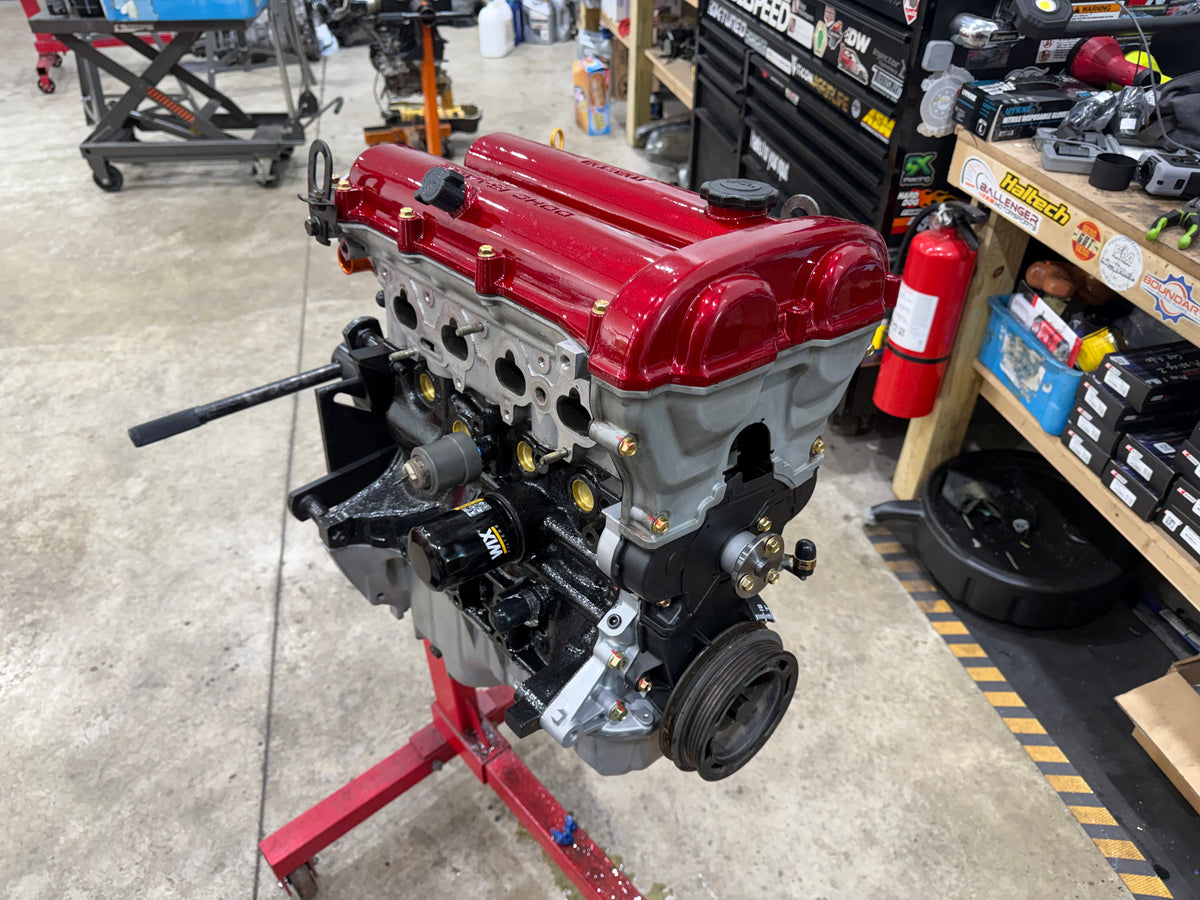

  • Assembled Miata engine with red valve cover and oil filter on a red engine stand

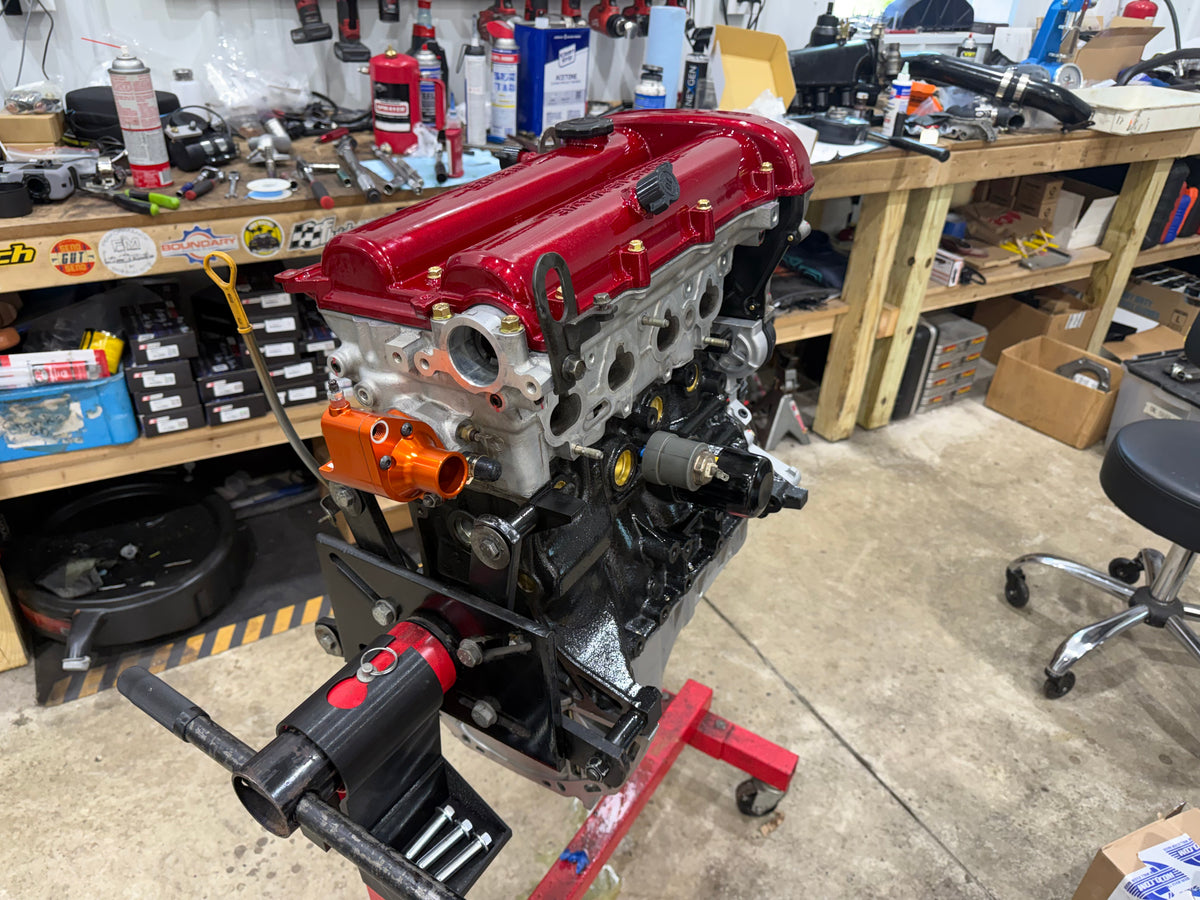

  • Assembled Miata engine with red valve cover and orange coolant outlet on an engine stand, rear view

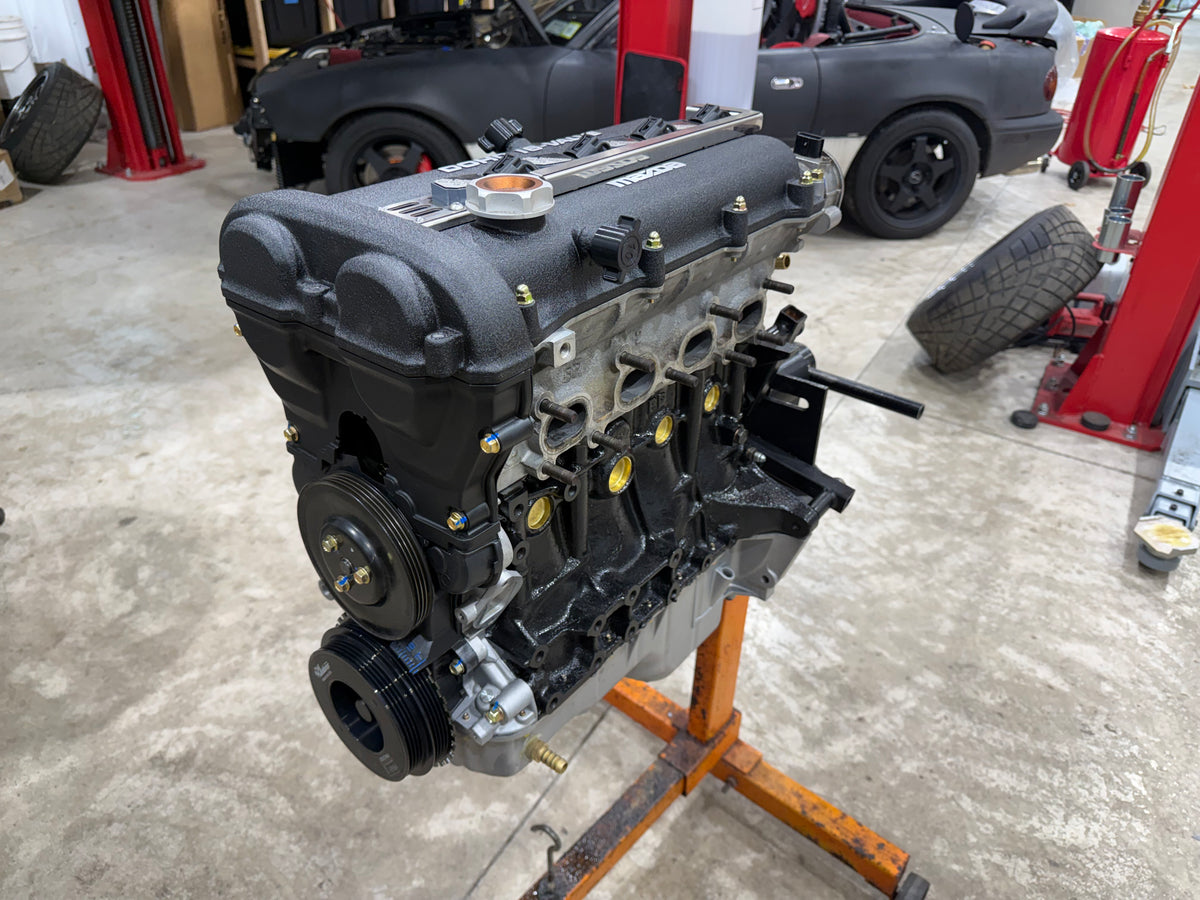

  • Assembled Miata engine with textured black valve cover on an orange engine stand

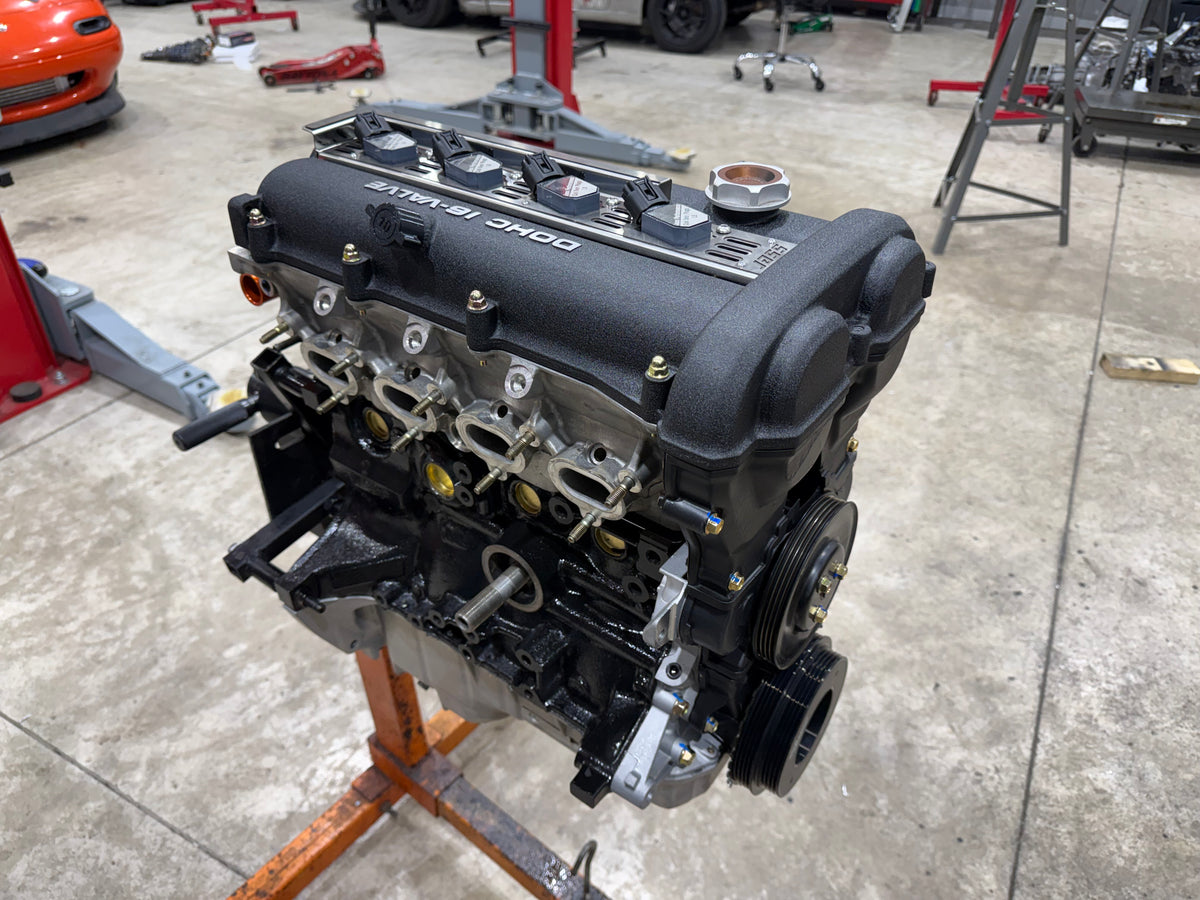

  • Assembled Miata engine with textured black valve cover and coil packs on an orange engine stand

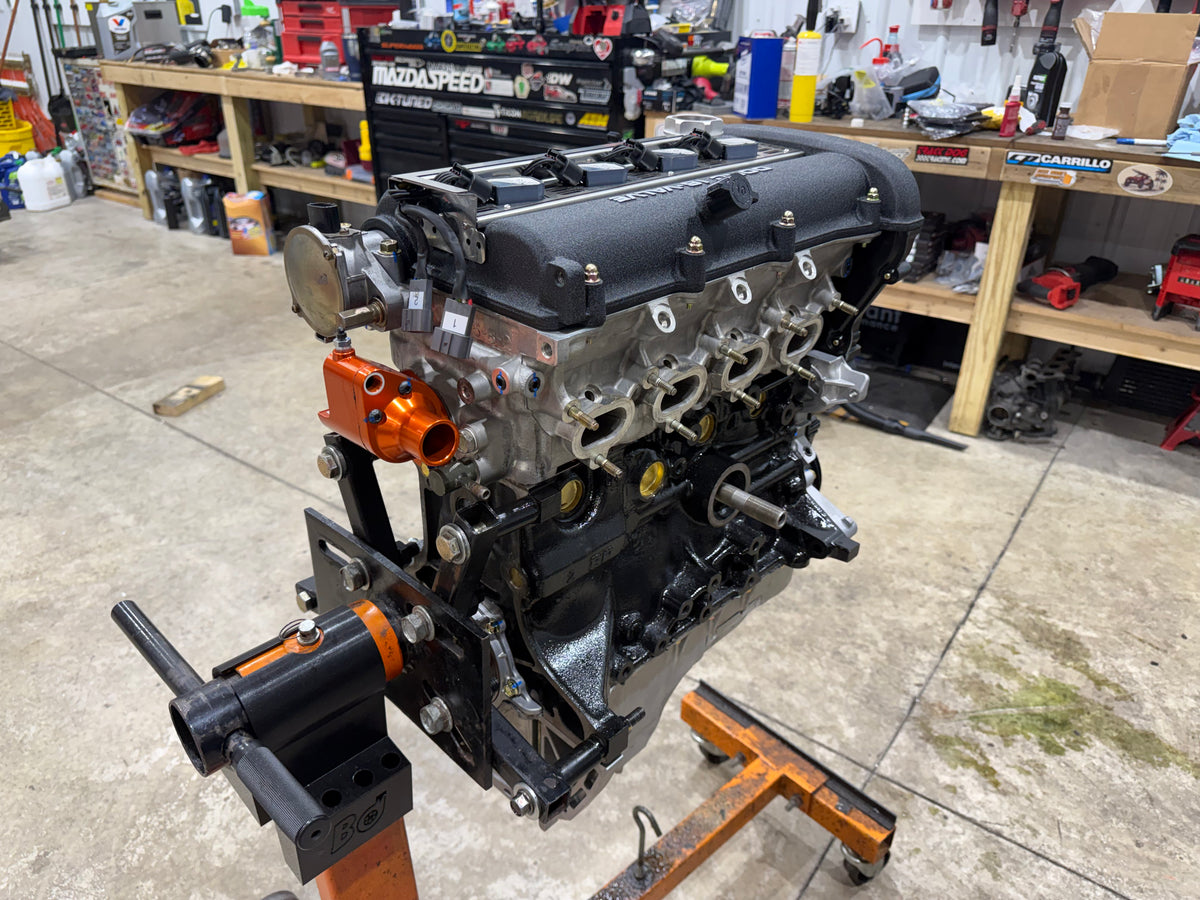

  • Assembled Miata engine with black valve cover, throttle body and orange coolant outlet on an engine stand

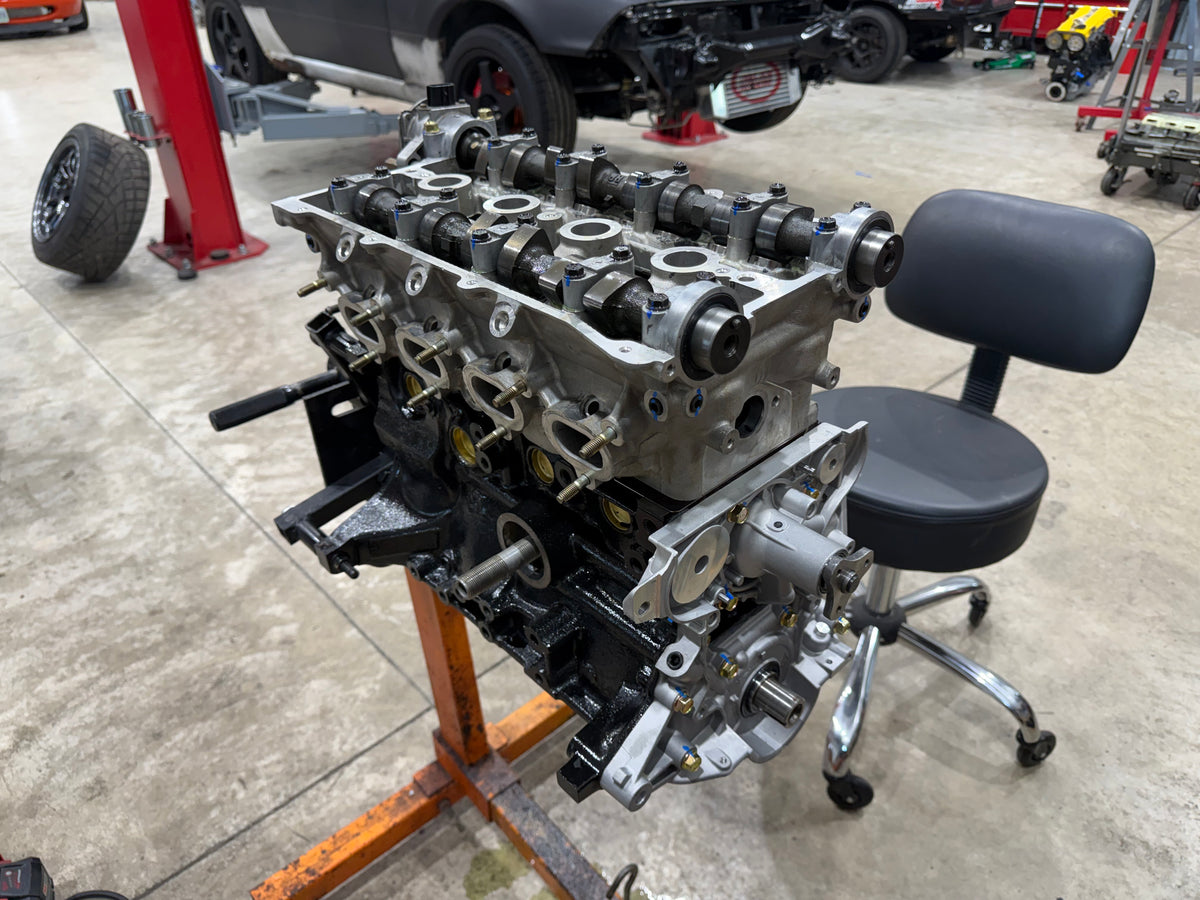

  • Miata long block on an engine stand with the valve cover off, camshafts and cam caps in view
  • Engine wrapped in plastic and shop towels, strapped to a wooden crate base for shipping
  • Wrapped engine strapped down inside an open wooden shipping crate
  • Closed wooden engine shipping crate with the Napp Motorsports logo

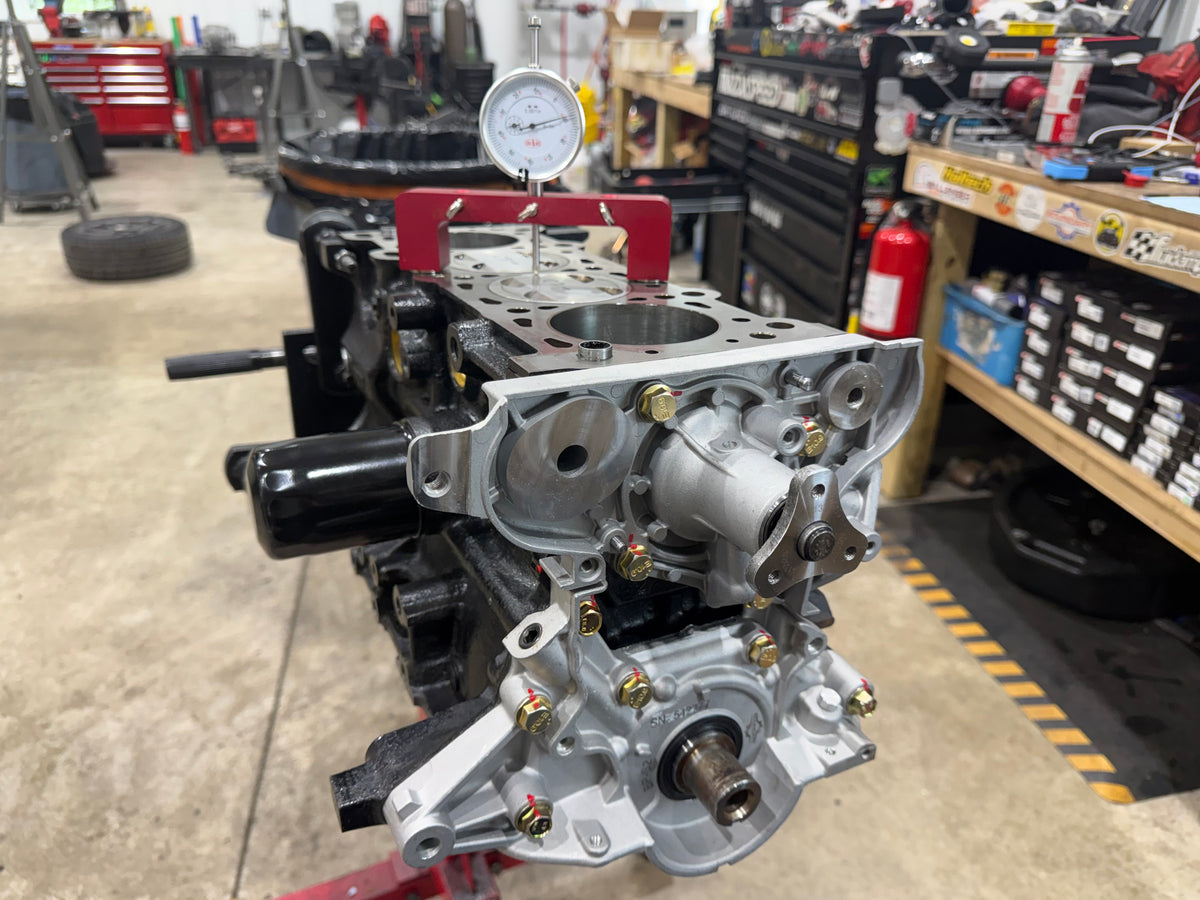

  • Dial indicator on a deck bridge over a cylinder during short block assembly

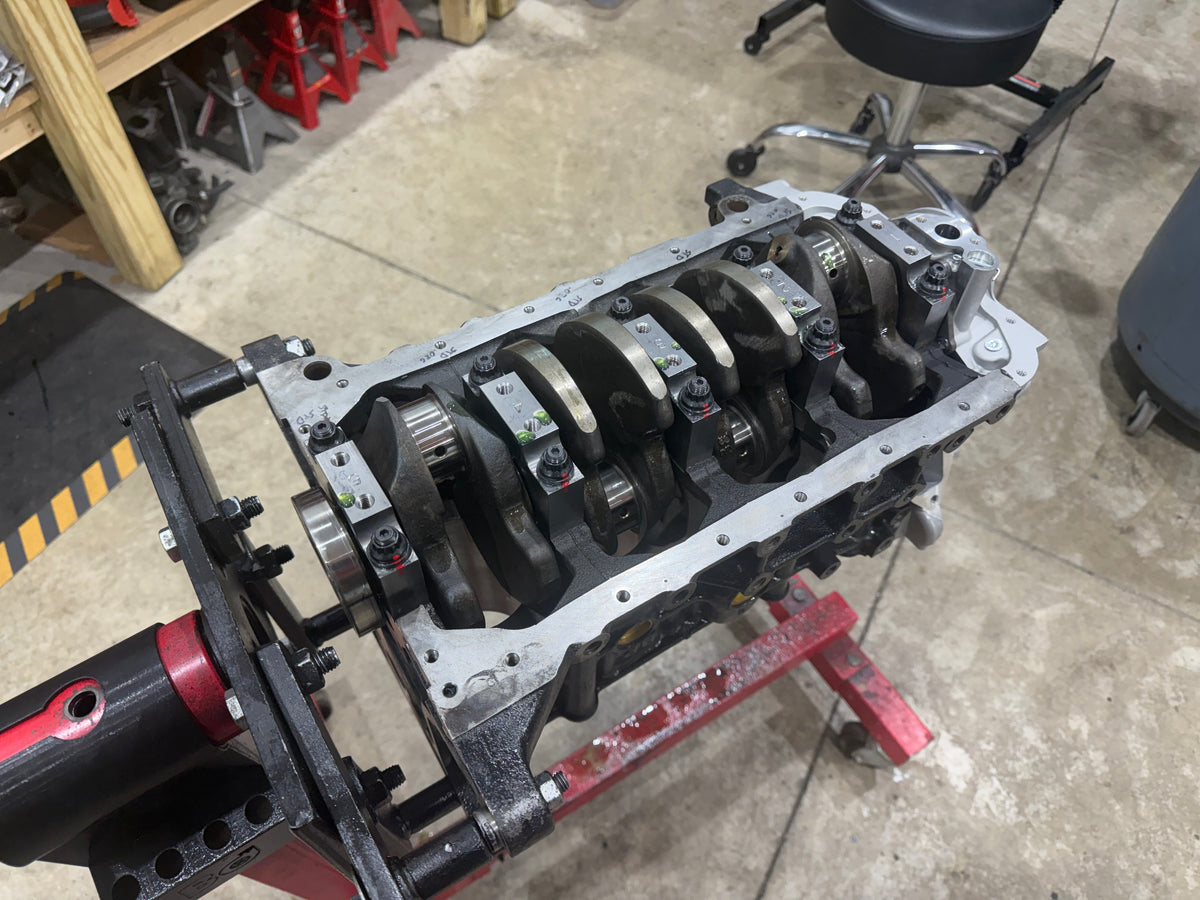

  • Engine block upside down on a stand with the crankshaft and main caps installed

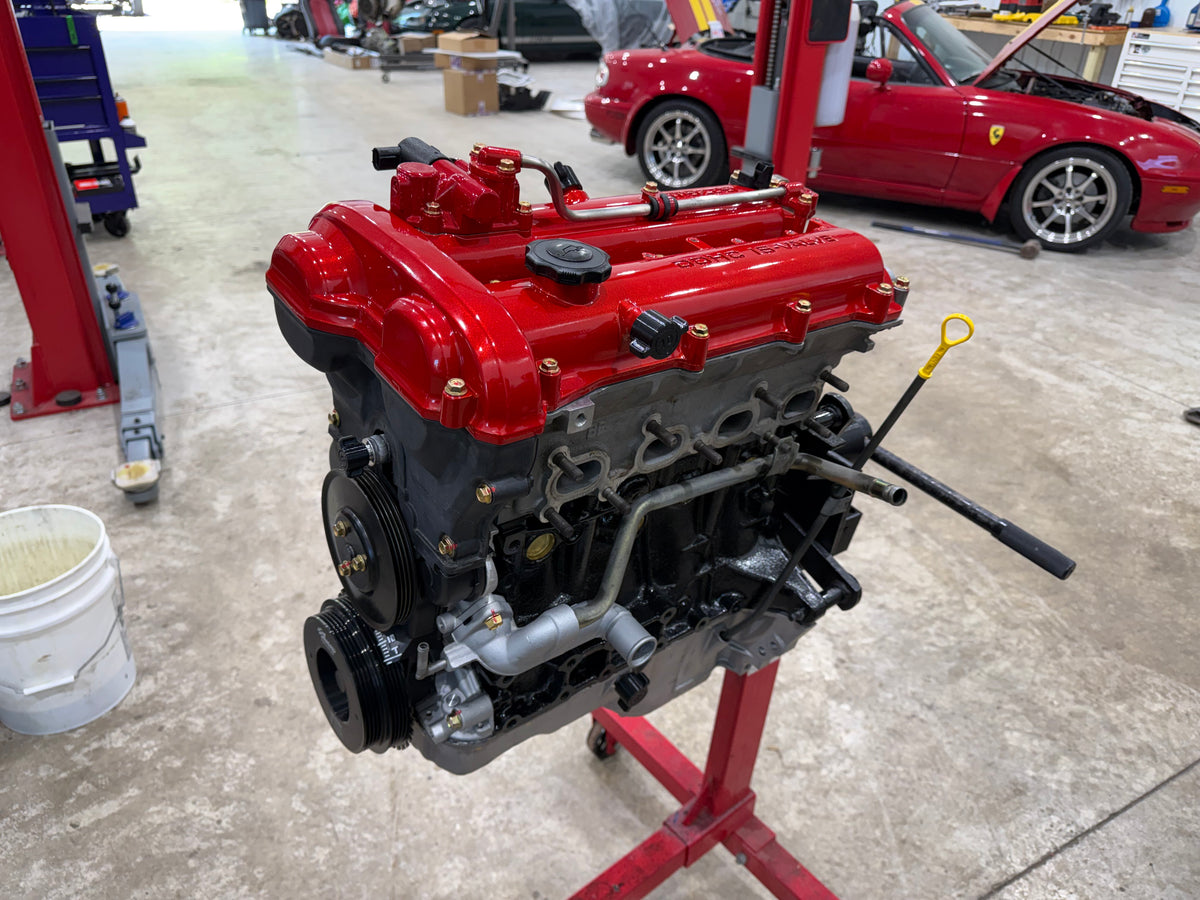

  • Assembled Miata engine with red valve cover and yellow dipstick handle on a red engine stand

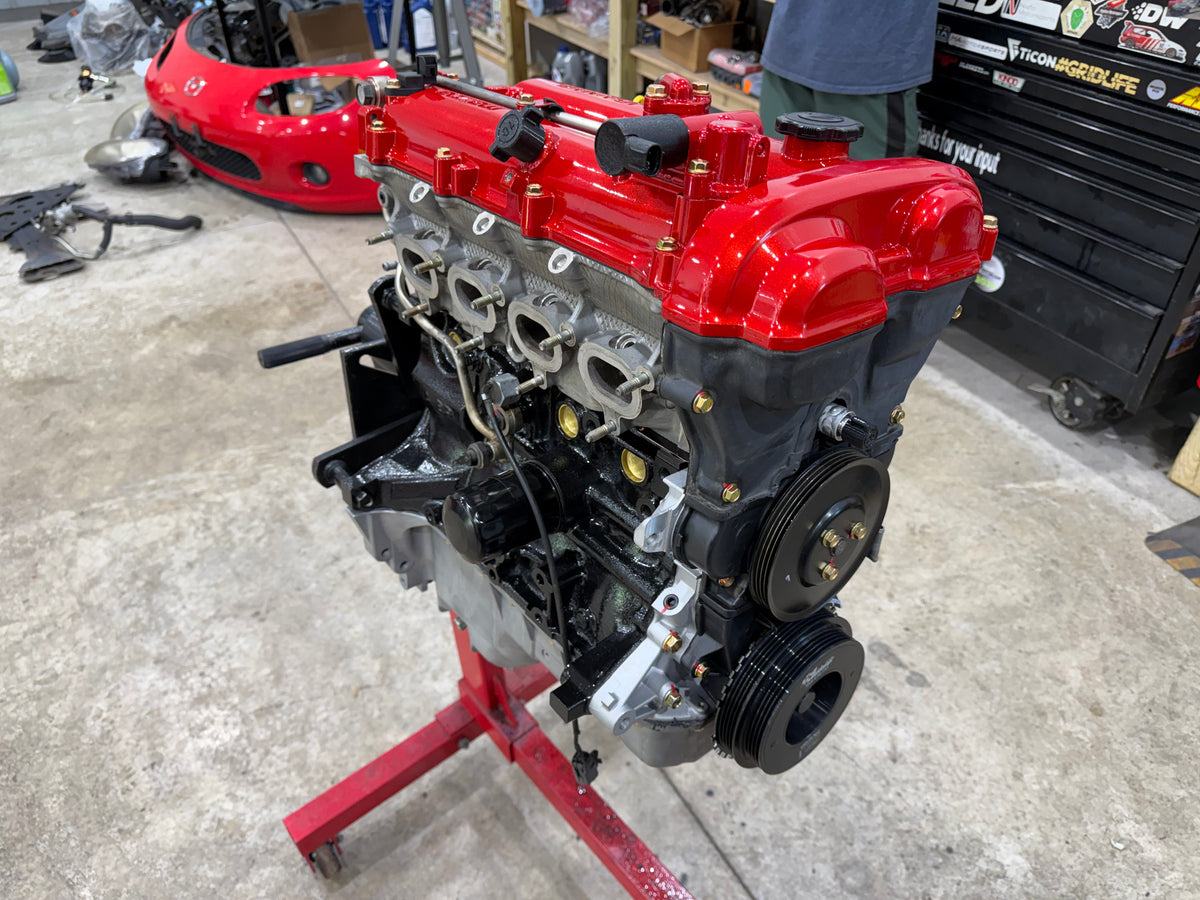

  • Assembled Miata engine with red valve cover and black front pulleys on a red engine stand

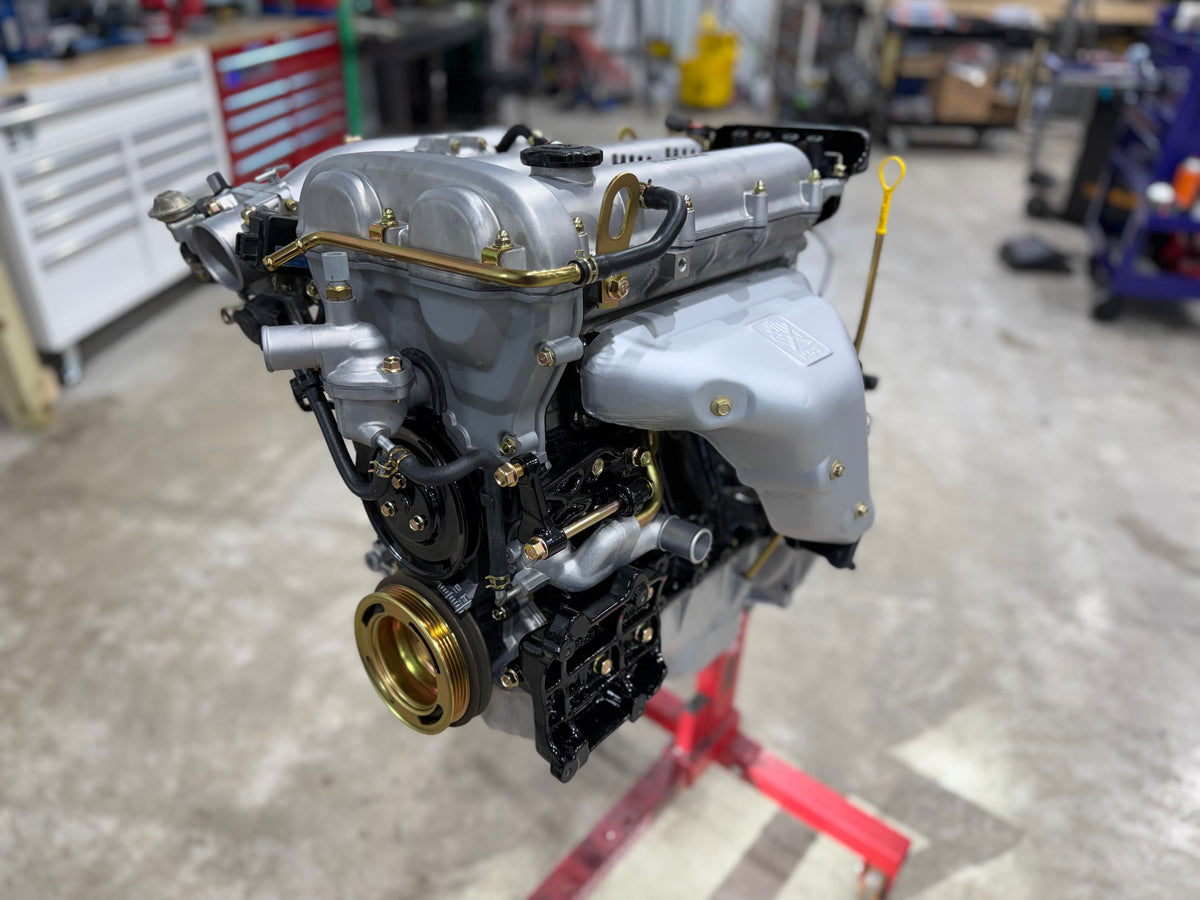

  • Assembled Miata engine on a build stand with silver valve cover, exhaust heat shield and gold crank pulley

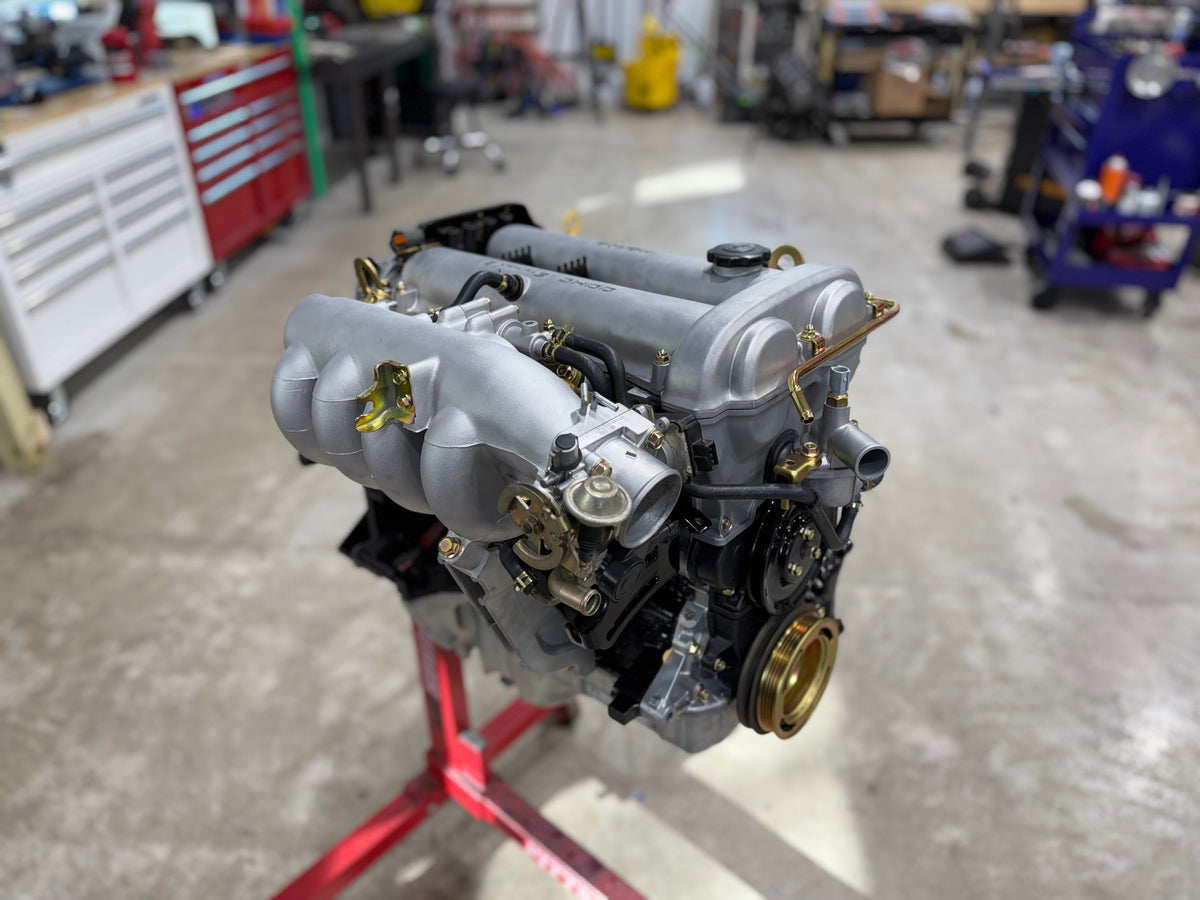

  • Assembled Miata engine on a build stand with silver intake manifold and throttle body

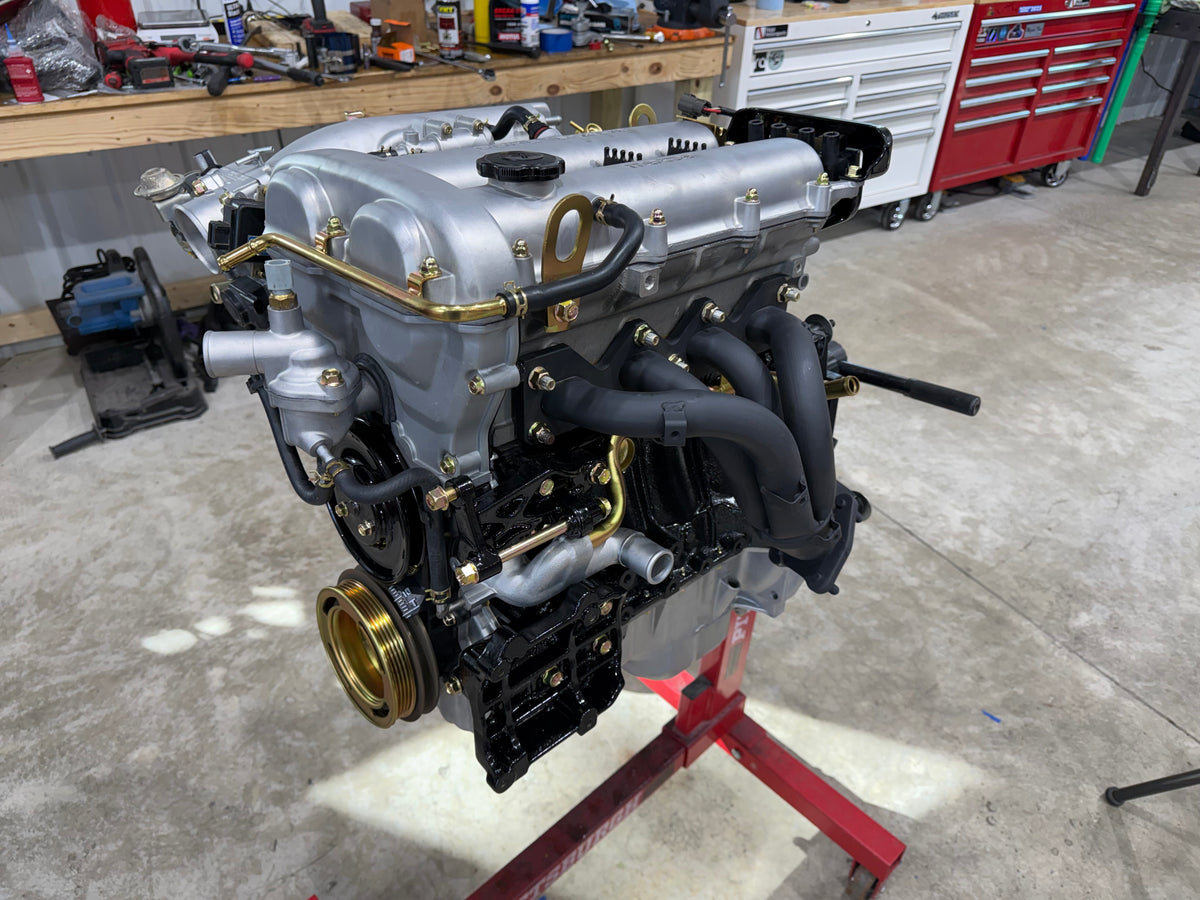

  • Assembled Miata engine with silver valve cover, black exhaust header and gold crank pulley on a red engine stand
1 20

Napp Motorsports

Miata Engine Build Packages - NA/NB Miata

Miata Engine Build Packages - NA/NB Miata

$4,846.80 USD
$4,846.80 USD
Sale Sold out
Shipping calculated at checkout.
Engine
Package

For off-road use only.

Not CARB Legal

These are my engine build packages for the NA and NB Miata, built from the parts combinations I use on my customer builds, so you can skip the long quote process. Pick your engine and your package. Anything above 400 hp is a custom quote: email me via the "Contact Us" page.

When you order, tell me your induction type: Naturally Aspirated, Supercharged or Turbo.

Above 400 hp: custom quote.

Every package includes machine work, assembly and the parts listed for it. Prices assume you send your own core; freight is extra.

Restoration (Stock Power)

  • New piston rings (your stock pistons reused)
  • Main bearings
  • Rod bearings
  • Thrust bearings
  • Oil pump (OEM)
  • Oil galley freeze plugs (OEM)
  • 30 mm freeze plugs
  • 35 mm freeze plugs
  • Crank bolt (OEM)
  • Crank key (OEM)
  • Head gasket (OEM)
  • Gates timing belt kit
  • Complete Gasket Set (OEM)
  • NGK spark plugs
  • Gates water pump
  • Replacement lower timing covers
  • Your valve cover powder coated in your color of choice
  • Machine work and assembly

250 hp Capable (Track / Dual Duty)

  • New piston rings (your stock pistons reused)
  • Main bearings, King/ACL Race
  • Rod bearings, King/ACL Race
  • Thrust bearings, King/ACL Race
  • Boundary Stage 2 oil pump (72 psi)
  • Oil galley freeze plugs
  • 30 mm freeze plugs
  • 35 mm freeze plugs
  • Crank bolt (Mazda OEM)
  • Crank key (Mazda OEM)
  • Cometic MLS head gasket
  • Head bolts (Mahle)
  • Gates timing belt kit
  • Mazda OEM complete gasket set
  • NGK spark plugs
  • Gates water pump
  • Replacement lower timing covers
  • SuperMiata coolant reroute
  • Coolant neck with turbo coolant feed (Turbo builds only)
  • Turbo oil return bung (Turbo builds only)
  • Fluidampr crank pulley (1.6 B6 Long Nose, 1.8 BP (NA8), 1.8 BP4W (NB1), 1.8 BP6D VVT (NB2))
  • 1.8 water pump pulley (for the Fluidampr) (1.6 B6 Long Nose)
  • VVT rebuild kit (Mazda OEM) (1.8 BP6D VVT (NB2))
  • Your valve cover powder coated in your color of choice
  • Machine work and assembly

Long nose 1.6 with the Fluidampr: you will have to run a 1994-1997 Miata alternator.

300 hp Capable

  • New piston rings (your stock pistons reused)
  • Manley H-beam rods
  • Main bearings, King/ACL Race
  • Rod bearings, King/ACL Race
  • Thrust bearings, King/ACL Race
  • Boundary Stage 2 oil pump (72 psi)
  • ARP main studs
  • Oil galley freeze plugs
  • 30 mm freeze plugs
  • 35 mm freeze plugs
  • Crank bolt (Mazda OEM)
  • Crank key (Mazda OEM)
  • ARP head studs
  • Cometic MLS head gasket
  • Gates timing belt kit
  • Mazda OEM complete gasket set
  • NGK spark plugs
  • Gates water pump
  • Replacement lower timing covers
  • SuperMiata coolant reroute
  • Coolant neck with turbo coolant feed (Turbo builds only)
  • Turbo oil return bung (Turbo builds only)
  • Fluidampr crank pulley (Excl SNC 1.6)
  • 1.8 water pump pulley (for the Fluidampr) (1.6 LNC Only)
  • 36-2 trigger wheel (NB1/2 Only)
  • VVT rebuild kit (Mazda OEM) (VVT Only)
  • Your valve cover powder coated in your color of choice
  • Machine work and assembly

Long nose 1.6 with the Fluidampr: you will have to run a 1994-1997 Miata alternator.

300-400 hp (Standard Turbo Package)

  • Supertech forged pistons with Wiseco XX rings
  • Manley H-beam rods
  • Main bearings, King/ACL Race
  • Rod bearings, King/ACL Race
  • Thrust bearings, King/ACL Race
  • Boundary Stage 2 oil pump (72 psi)
  • ARP main studs
  • ARP head studs
  • Oil galley freeze plugs
  • 30 mm freeze plugs
  • 35 mm freeze plugs
  • Crank bolt (Mazda OEM)
  • Crank key (Mazda OEM)
  • Cometic MLS head gasket
  • Supertech valve springs
  • Supertech 6mm valve locks (NA6/NA8 Only)
  • Gates timing belt kit
  • Mazda OEM complete gasket set
  • NGK spark plugs
  • Gates water pump
  • Replacement lower timing covers
  • SuperMiata coolant reroute
  • Coolant neck with turbo coolant feed (Turbo builds only)
  • Turbo oil return bung (Turbo builds only)
  • Fluidampr crank pulley (1.6 B6 Long Nose, 1.8 BP (NA8), 1.8 BP4W (NB1), 1.8 BP6D VVT (NB2))
  • 1.8 water pump pulley (for the Fluidampr) (1.6 B6 Long Nose)
  • 36-2 trigger wheel (1.8 BP4W (NB1), 1.8 BP6D VVT (NB2))
  • VVT rebuild kit (Mazda OEM) (1.8 BP6D VVT (NB2))
  • Your valve cover powder coated in your color of choice
  • Machine work and assembly

Long nose 1.6 with the Fluidampr: you will have to run a 1994-1997 Miata alternator.

Add-ons

Add-on Packages Price
ARP head studs (instead of head bolts) Restoration (Stock Power), 250 hp Capable (Track / Dual Duty) $112.57
ARP main studs 250 hp Capable (Track / Dual Duty) $129.00
Oil pan baffle 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $179.00
Catch can, turbo, with 10AN lines 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $315.00
Catch can, non-turbo 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $288.00
Fuel System Package (no injectors) 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $449.99
Injectors, 365cc (NA) 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $423.00
Injectors, 775cc (supercharged) 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $455.00
Injectors, 1000cc (turbo) 250 hp Capable (Track / Dual Duty), 300 hp Capable, 300-400 hp (Standard Turbo Package) $502.00
Supertech valve springs 300 hp Capable 1.6 B6 Short Nose, 1.6 B6 Long Nose, 1.8 BP (NA8): $670.91; 1.8 BP4W (NB1), 1.8 BP6D VVT (NB2): $564.83
Billet main caps 300-400 hp (Standard Turbo Package) $1,073.63

Engine core

If you supply a core, there is no extra cost. If you need me to supply a core, it is added to your package (1.6 B6 Short Nose, 1.6 B6 Long Nose, 1.8 BP (NA8): $1,500.00; 1.8 BP4W (NB1), 1.8 BP6D VVT (NB2): $1,800.00) and it is part of your deposit.

Deposit

The deposit is the parts cost of your package and any add-ons. The deposit is not refundable after parts have been ordered for the build. If you cancel after that time (usually 24 hours), the parts that you paid a deposit for will be sent to you, excluding any custom parts (valve cover modification, powder coating and 10AN return bung costs will all be forfeit).

Payment is split in two. The parts deposit shown for your package and add-ons is charged at checkout. The balance is charged to the same card when your engine is complete. Shipping is invoiced separately.

Engine builds are excluded from the return policy.

Freight

Shipping is charged on a separate invoice when your engine is complete.

Warranty

Warranty is on workmanship only. If an engine fails and it is deemed to be due to faulty workmanship by me, then I will cover the repair. Parts failures or failures due to owner neglect/abuse are not covered by any warranty.

Lead time

Engine build lead time is 4-6 weeks, depending on what level of build you are going with. If you have any questions on lead time, please feel free to email me via the "Contact Us" page.

  • Restoration: 6 Weeks
  • 250-400HP Builds: 6 Weeks
  • 400hp + Builds: 6-8 Weeks (Will confirm)

Lead Times are based on the assumption that the engine is in hand and ready for work. Any parts delays due to incoming engine damage are not factored into the lead time estimate.
